Large-scale news distillation for production¶
Harmonizing Flowdapt, Qdrant, vLLM¶
Retreival Augmented Generative AI (RAG) is a new approach to infusing large language models with information that was not present during training. Most RAG examples are constrained to off-premise LLMs (like OpenAI or Claude), static knowledge bases (upload documents once) and are designed to interact with a single user. These limitations allow for fun toys, but they do not scale to production.
Instead, we at Emergent Methods formulated a production scale news distillation architecture that is based on three key softwares: - Flowdapt: large-scale orchestration of cluster-compute (with the Ray executor) - Qdrant: high-performance rust-based vector database - vLLM: high-throughput LLM server employing paged-attention and continuous batching mechanisms
As shown in Figure 1, the architecture is focused primarily on a highly parallelized interconnected set of services where Flowdapt plays the role of orchestration, vLLM plays a role of a reasoning engine underpinning 30 unique back and front end calls to an on-premise LLM, and Qdrant plays the role of high-performance similarity search for building context engineering for the final LLM call.

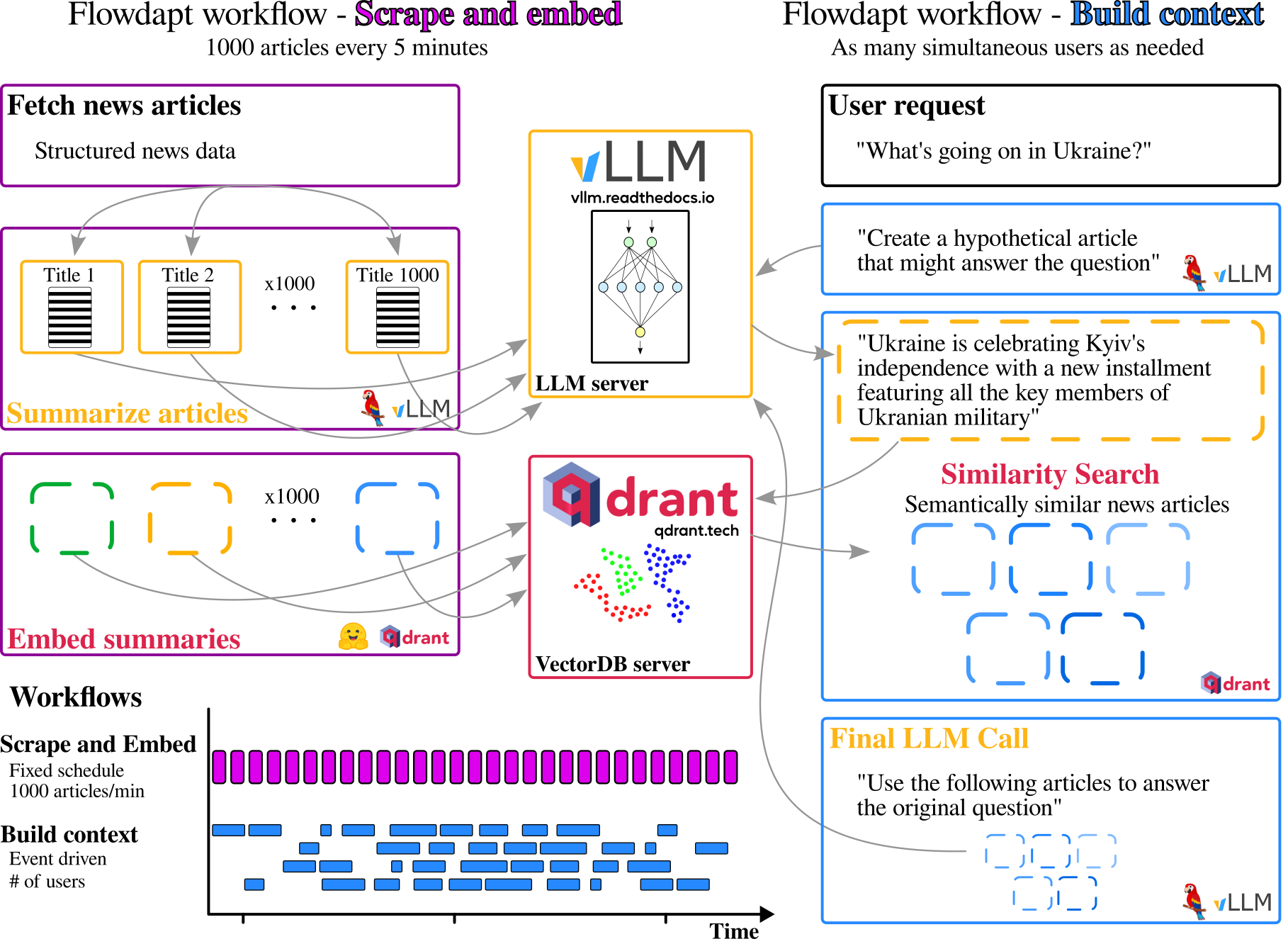

Figure 1: The architecture of Paperboy, Flowdapt's large-scale news distillation system
Paperboy¶
The Paperboy plug-in to Flowdapt is written in vanilla python, despite being highly parallelized across a distributed Ray/Dask backend. Here we provide a general structure and overview of how the most important components are combined.
Scrape and embed workflow¶
Paperboy is the Flowdapt plug-in that orchestrates the entire system shown in Figure 1. The scrape and embed workflow is defined by two functions. The first function is called get_all_articles() and it scrapes the news api for the latest news articles. It returns the scraped articles as a list. This list is then parameterized across the second function summarize_and_embed(article). Flowdapt then parallelizes the second function across the list of articles, ensuring to respect resource limitations.
import requests
from flowdapt.compute.object_store import put
from flowdapt.compute.resource.workflow.context import get_run_context
from flowdapt.lib.logger import get_logger
def get_all_articles(*args):
"""
Get the current set of articles from a news API
"""
# You can access your workflow context which contains
# all the information about present workflow and configuration files
confing = get_run_context().config
# get the endpoint to your news api and make a first
# request to get the number of articles
url = 'https://your_news_api.com/v1'
# build your params dynamically here, or use the config to set your keywords of interest
params = {'q': config["queries"], 'from_': '6 hours ago'}
headers = {'x-api-token': 'your-token'}
response = requests.get(url, params=params, headers=headers).json()
articles = remove_duplicate_articles(articles)
articles = shuffle_articles(articles)
# store the time of scrape in cluster memory so that we can
# scrape from that date in the next scheduled scrape
put(
f"last_checked_time",
datetime.now(timezone.utc),
artifact_only=True
)
# return the articles as a list that will parameterize the next stage.
logger.info(f"Final number of articles going for embedding is {len(articles)}")
return articles
Meanwhile, the summarize_and_embed() function is defined in typical python fashion, where it takes a single article and summarizes and embeds it.
from langchain.chat_models import ChatOpenAI
from flowdapt_paperboy_plugin import prompts
from flowdapt_paperboy_plugin import utils
from langchain.schema import Document
def summarize_article(article: dict):
"""
This stage is parameterized by the preceding function called `get_all_articles`. The list of article dicts
returned from `get_all_articles()` defines the parameterization of this function. This function
is run once for each article in the list returned from `get_all_articles()`.
"""
# using langchain to call a locally hosted vLLM
llm = ChatOpenAI(
openai_api_base=config["llm_base_url"], # if you are running vLLM locally
model="meta-llama/llama2-13b-chat-hf"
)
# summarize and get classification from llm
text = f"""
Title: {article['title']}
Article: {article["content"]}
Published: {date}
Source: {article['source']['domain']}
"""
try:
agent = prompts.SUMMARIZE_ARTICLE_TEMPLATE | llm
response = agent.invoke({"input": text})
parsed_dict = utils.extract_summary_from_string(content)
except Exception as e:
logger.warning(f"Could not parse {article['title']}, {e}")
pass
# create a document for to embed to the vectorstore
page_content = f"""
title: {article['title']}
summary: {parsed_dict["summary"]}
source: {article['source']['domain']}
"""
document = Document(
page_content=page_content,
metadata={
"article": article,
"type": "summary",
"timestamp": article["pubDate"],
"articleId": article["articleId"]
}
)
return document
Here we see that the following stage is also parameterized on the output of summarize_article. update_vectorstore_documents() is defined as:
Danger
We use the langchain qdrant wrapper here for simplicity, but it is generally preferable to use the Qdrant client directly as it provides more flexibility.
from qdrant_client import QdrantClient
from langchain.embeddings import HuggingFaceEmbeddings
from langchain.vectorstores import Qdrant
def update_vectorstore_documents(documents):
"""
Given a list of documents, embed with huggingface and update the Qdrant
vectorstore
"""
config = get_run_context().config
# we define the embedding function here
embedding_function = HuggingFaceEmbeddings(
model_name="thenlper/gte-small",
model_kwargs={'device': 'cpu'} ,
encode_kwargs={'normalize_embeddings': False}
)
client = QdrantClient(url=config["qdrant_url"]) # if you are hosting qdrant locally
qdrant = Qdrant(client, config["study_identifier"], embeddings=embedding_function)
try:
# if the collection exists, add to it
qdrant.add_documents(documents)
except Exception as e:
logger.info(f"Creating new qdrant collection because {e}")
qdrant.from_documents(
documents,
embedding_function,
url=config["qdrant_url"],
collection_name="my_first_news_rag"
)
return
Defining workflows and configs¶
In Flowdapt, the workflows and configs are defined using Kubernetes-style schemas. For example, the summarize and embed workflow is then defined as:
kind: workflow
metadata:
name: scrape_and_summarize
annotations:
group: paperboy
spec:
stages:
- name: get_all_articles
target: flowdapt_paperboy_plugin.newsapi.get_all_articles
resources:
cpus: 0.5
- name: summarize_article
target: flowdapt_paperboy_plugin.newsapi.summarize_article
# use type: parameterized to indicate that this stage will be parameterized
# across the output of the depends_on stage
type: parameterized
depends_on:
- get_all_articles
resources:
embedders: 1
vllm: 1
- name: upsert_vectorstore
target: flowdapt_paperboy_plugin.utils.update_vectorstore_documents
# use type: parameterized to indicate that this stage will be parameterized
# across the output of the depends_on stage
type: parameterized
depends_on:
- summarize_article
resources:
embedders: 1
Define your config with:
kind: config
metadata:
name: main
annotations:
group: paperboy
spec:
selector:
type: annotation
value:
group: paperboy
data:
study_identifier: test_run1
queries:
- stock market
- investing
- finance
qdrant_url: http://localhost:6333
llm_base_url: http://localhost:8000
query_model: meta-llama/llama2-13b-chat-hf
And add a trigger to schedule the workflow every 6 hours:
kind: trigger_rule
metadata:
name: trigger_scrape
spec:
type: schedule
rule:
- "0 */6 * * *"
action:
target: run_workflow
parameters:
workflow: scrape_and_summarize
Starting the server¶
This workflow can now be started with:
# start the flowdapt server in a separate process
flowdapt run &
# sync the workflows to the server, the schedule is registered
# and the server will handle the rest
flowctl apply -p path/to/workflows
flowctl apply -p path/to/configs
Now, the workflow can be run manually with flowctl run scrape_and_summarize. But if you would like to activate the scheduled trigger that we wrote above, you would apply it:
flowctl apply -p path/to/trigger.yaml
Build context workflow¶
The build context workflow is defined by a single function build_context() that is called each time a user calls the /chat endpoint on paperboy.
Danger
While this following example is interesting, technically to scale this properly you would want to use an async stage and ensure your embedding is performed by an external server (we use Text Embedding Inference in production). In that case, you would use an asynchronous Qdrant client directly and await your calls to each service, 1. the embedding server, 2. the vector store, and 3. the vLLM server. This would allow the single python process to service many users asynchronously. However, here we stick to the same objects and functions as above for simplicity.
This function is defined as:
def build_context(prompt):
"""
The stage called when a user makes their query. The payload from the user must include
"prompt" which is the query,
"uuid" which is the user's uuid(optional)
"profile" which is the user's profile(optional)
"""
context = get_run_context()
config = context.config
embedding_function = HuggingFaceEmbeddings(
model_name="thenlper/gte-small",
model_kwargs={'device': 'cpu'},
encode_kwargs={'normalize_embeddings': False}
)
client = QdrantClient(config["qdrant_url"])
vector_store = Qdrant(client, config["study_identifier"], embedding_function)
llm = ChatOpenAI(
openai_api_base=config["llm_base_url"],
model=config["query_model"]
)
docs_scores += vector_store.similarity_search_with_score(prompt, k=5, score_threshold=0.95)
logger.warning(f"Found {len(docs_scores)} documents.")
# build the context from the retrieved documents
docs_context = ""
doc_list = []
for i, tup in enumerate(docs_scores):
doc = tup[0]
logger.debug(f"Here is the summary: {doc.page_content}")
item = f"\n[{i+1}]:\n{doc.page_content}"
docs_context += item
doc_list.append(doc)
return {"context": docs_context}
The build context workflow is then defined as:
kind: workflow
metadata:
name: build_context
annotations:
group: paperboy
spec:
stages:
- name: build_context
target: flowdapt_paperboy_plugin.paperboy.build_context
resources:
vllm: 1
This workflow can be tested with:
```bash
# assuming the flowdapt server is still running in a separate process
# as shown above
flowctl run build_context --prompt What is the best way to invest in the stock market?
Which will return the context. You can feed that context into your favorite LLM to generate a response:
# langchain ChatOpenAI object
response = agent.invoke({"input": context})
